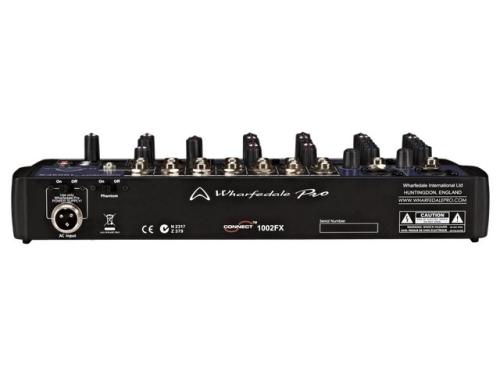

Wharfedale Connect 1002FX Micro Mixer
Wharfedale CONNECT1002FX The Pro Connect 1002 FX is a high quality micro-mixer, suitable for a wide range of applications.
The Wharfedale Pro Connect 1002 FX is a high quality micro-mixer, suitable for a wide range of applications.

The built-in digital effect processor with 56 algorithms is ideal for home recording, live-sound and fixed installation use.

Professional big mixer features such as phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package. The microphone pre-amplifiers use the same high quality components and construction methods that are employed in our mid-format SL Series Mixers.

The Wharfedale Pro Connect 1002 FX features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 1002 FX mixer can handle any situation.
> Channels : 10
> Switchable Global +48V Phantom Power
> FX send


Specifications
* Maximum Balanced Output Level (1%T.H.D. at 1kHz ): Main XLR Balanced out +26dBu ±1dBu Main 1/4" Jack Balanced out +26dBu ±1dBu
* Maximum Unbalanced Output Level (1%T.H.D. at 1kHz ): Main XLR Unbalanced out +21dBu ±1dBu Main 1/4" Jack Unbalanced out +21dBu ± 1dBu Headphone output 150mw±5mw @ 32ohms
* THD+N: <0.019% @ + 14dBu ±0.5dBu
* Frequency Response: 20Hz~20kHz±1dB
* Hum and Noise 20Hz- 20Khz(150R): -127dBu ±5dBu Mic Pre Equivalent Input Noise -85dBu ±5dBu Residual Noise
* S/N: 82dB ±5dB @ fader max
* FFT: -62dBv ±5dBv @ gian fader max
* CMRR: 60dB±5dB @ 1kHz
* Maximum Input Level: Mic +4dBu ±1dBu Channel Line +25dBu±1dBu Stereo Line +25dBu ±1dBu 2TK IN +25dBu ±1dBu
* Impedances: Mic: Balanced 6 Kohms, Unbalanced 3Kohms ±500ohms Line: Balanced 44 Kohms, Unbalanced 22Kohms ±2kohms 2TK IN: Unbalanced 10Kohms ±2kohms All other Unbalanced outputs:100 ohms, Balanced outputs: 200ohms
* Mono Input Channel Gain: 50dB Variable MIC(0~-50dB) Line(- 20dB~+30dB)
* Input Channel EQ: High (+/-15dB)±2dBu 12kHz Shelving Mid (+/-15dB)±2dBu 1kHz Shelving Low (+/-15dB)±2dBu 80Hz Shelving
* Effect Out: 56 effects: 1.(ROOM=r1-r8); 2.(PLATE=P1-P5); 3.(HALL=h1-h8); 4.(GATED REVERB=g1-g3); 5.(CHORUS=c1-c8) 6.(FLANGRE=f1-f8); 7.(ROTARY SPEAKER=s1-s7); 8.(DELAY=d1-d9).
* Level Meter: 4-Segment LEDx2 (output of +4dBu = 0dB) Main L/R
* AC Power options: AC100-120V~ 50Hz/60Hz or AC220-240V~ 50Hz/60Hz
* Weights: 1.37kg(3.02lbs)
* Channels : 10
* Input: 2x XLR/TRS Balanced Inputs + 4 Mono/Stereo Inputs
* Switchable Global +48V Phantom Power
* FX send

Shipping Volume: .001cbm
Shipping Weight: 1.37kg

Warranty: 12 Months
